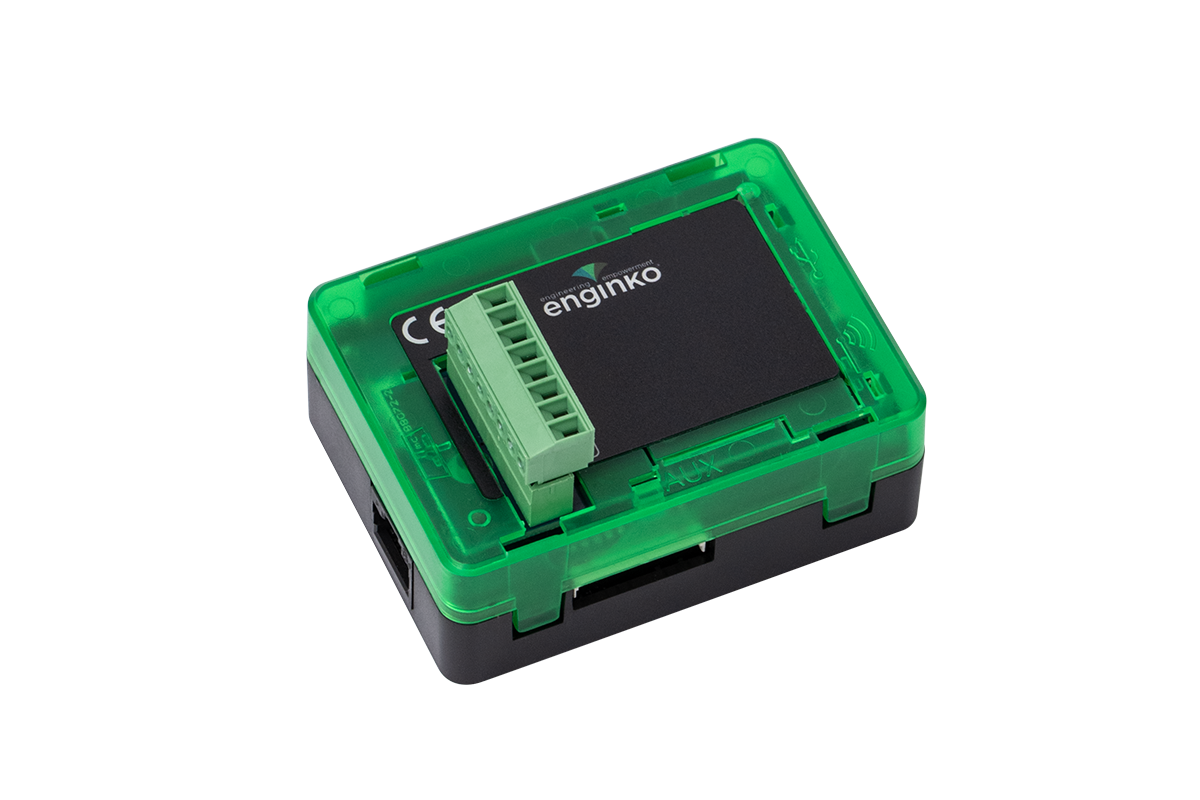

4 Channel 0-10V To Lorawan Interface MCF-LW06010

4 Channel 0-10V To Lorawan Interface MCF-LW06010

The MCF-LW06010 is a versatile 4-channel 0-10V to LoRaWAN® interface designed for integrating various analog sensors into a LoRaWAN® platform. It offers a seamless way to connect and transmit sensor data for remote monitoring and data logging purposes.



Specifications

  • CPU: Cortex M4
  • Onboard Features: RTC, EEProm (32KB), Flash (1MB)
  • Security: AES 128-bit encryption
  • Power: Rechargeable LiPo battery, 10-36Vdc power supply
  • Connectivity: Class C LoRaWAN® stack compatible with multiple regions (EU868, AS923, AU915, US915)
  • Inputs: 1000Vdc isolated analog inputs, four 0-10V 12-bit analog voltage inputs
  • Additional Features: USB On The Go, IoT node setup and firmware upgrade via USB, robust temperature ranges for storage (-20 to +80 °C) and operation (-10 to +70 °C)
  • Dimensions: 81 x 60 x 50mm

Summary

The MCF-LW06010 is a compact and powerful interface, ideal for remote industrial applications, environmental monitoring, and data logging, boasting robust security, versatile connectivity, and high durability.

Download specs
